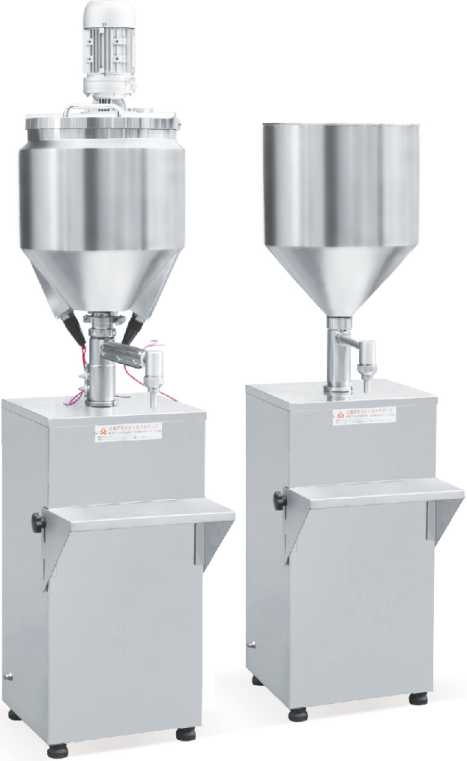

【GS-1/2 Electric/Pneumatic Filling Machine】

ElectricPneumatic Filling Machine

The electric/pneumatic filling machine is suitable for filling water, cream, lotion, etc. According to the filling requirement, the worktable is adjustable to go up and down.

GS-1/GS-2 Electric/Pneumatic Filling Machine Main features:

  1. Feeding method: Ordinary gravity method or Auto suction method.
  2. Control mode: electric control
  3. The filling quantity is divided into 6 series:
  • A: 5-15ml
  • B: 10-75ml
  • C: 20-150ml
  • D: 50-300ml
  • E: 100-500ml
  • F: 200-1000ml
Specification:
  • Compressed Air: Pressure 0.4-0.6 Mpa 0.3m3/min
  • Production Capacity: 10-80 time/min
  • Filling Error:<2%
  • The Height Adjustment of Work Platform: 100mm
  • Capacity of Material Pot: 20L, 30L, 40L, 50L
  • Machine Diameter Container: Depending on the material and filling quantity
  • Dimension: 500mm*450mm*1500mm
  • Weight: 50Kg
  • Power: 0.55KW /0.75KW
  • Voltagge: 220V

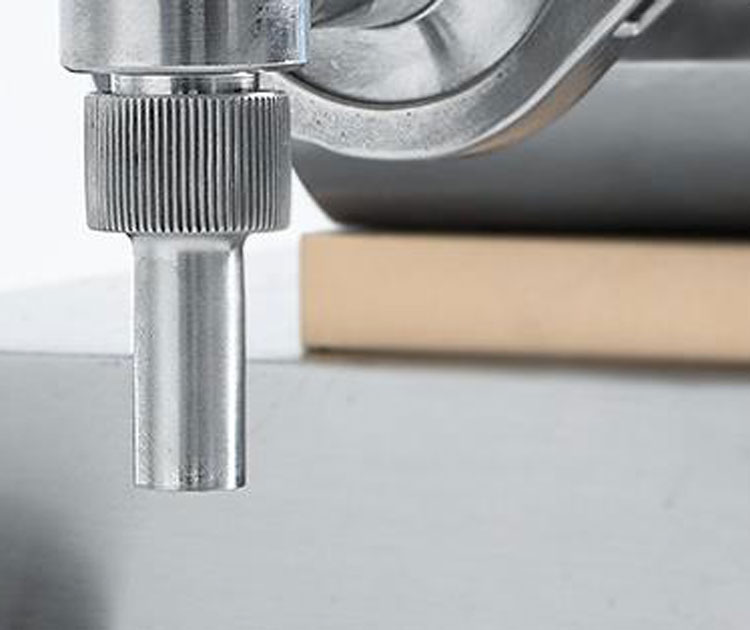

GS-2-ElectricPneumatic-Filling-Machine-Details

【Other similar manual fling machine】

pneumatic-filling-machine2
GS-3 Pneumatic Filling Machine
sauce-mixing-and-filling-machine
Sauce Mixing and Filling Machine
Syringe Filling Machine
Syringe Filling Machine

【Application scope of Manual filling machine】

Suitable for filling all kinds of products

Paste or liquid

Wide range of applications, far more than the following products can be filled

A variety of liquids can be filled
