ZJR laboratory vacuum emulsifier patent CE certificate
The sixth generation laboratory emulsifying machine

(1) System

Stainless steel cladding, safe and sanitary, easy to clean.

(2) Operation platform

(3) Tilting

The main pot can be flipped down to 120°so that even the high viscosity material can also be easily emptied.

(4) Heating & Thermal insulation

The main pot has independent hating & thermal insulation temperature control system. The thermal insulation layer is arranged outside the heating system to avoide high temperature scalding.

(5) Mixing & Ultra-highspeed homogenizing

Cooperated with YK patentmixing system, the ultra-highspeed precise Rotar/Statorsystem can achieve the best homogenizing effect.

(6) Connector

Reserved multiple sets of standard connectors can be used to add solid or liquid additives or access other sensors.

(7) Vacuum

With vacuum system, the pot can be maintained at a vacuum of less than -0.095MPa.

(8) Lifting beam

It can lift the overall mixing system to the outside of the pot, which is easy to clean and observe.

(9) Intelligent operating system

The simple and easy-to-learn innovative emulsifying control system is designed for lab environment. All the parameters can be adjusted easily. And even the hands are stained materials, it’s still easy to control.

(10) Lighting

Bran-new LED light source can both save energy and provide 150 lumens of illumination and 50,000 hours working life.

(11) Pretreament pot

The two pretreatment pots are both equipped with independent heating, temperature control and dispersing system. Pretreament materials can be directly sucked into main pot via negative pressure of main pot.

(12) Heating system

Exclusive heating sysytem for every pot.

Parts Analysis

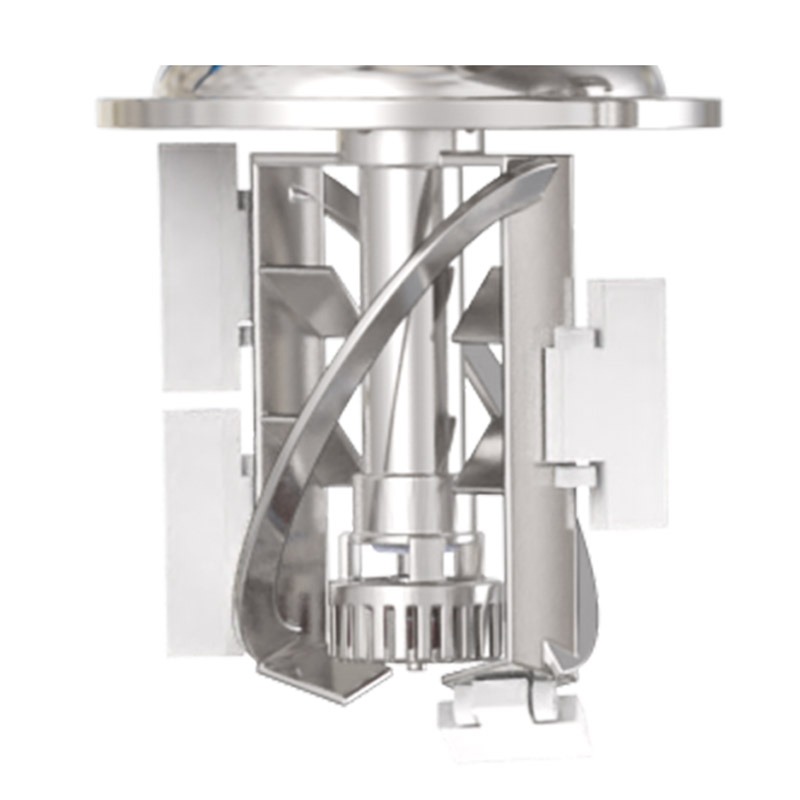

螺带搅拌均质

Cooperated with YeKeey patent technology—-single shift, Ribbon stirring designed for small emulsifying mixer, the ultra-high speed precise Rotar/Stator system can stably operate at 6,000rpm and achieve the best homogenizing effect.

We have abandoned the traditional pin and fixed pin, innovatively adopted the automatically bounced quick release design, which is convenient and easy to dismantle and clean.

It adopts modular design. Different Rotar/Stator systems can be chosen according to the characteristics of materials, in order to achieve the best effect of making materials.

homogenizer-system

Pharma

Lotions, gels, creams, ointments,emulsions, suspensions, sterile eye ointments and drops, active ingredients, etc.

food

Food

Sauces, mayonnaise, ketchup, dressings, fish paste, batter, jam and marmalade, juices, chocolate fillings, cheese spread, concentrated soup, pesto sauces, animal feed, etc.

Cosmetics

Lotions, gels, creams, shampoo, hair care products, make-up, mascara, lipstick compound,
foam baths, toothpaste, etc.

Chemistry

Battery gel, coatings, biotech products, ink, lacquers, paints, glues, furniture polishes, fillers and putties, agrochemicals, plastic dispersions, paper coating slurry, silicone emulsions, etc.

Product Parameters

technology-data
Item ZJR-5 ZJR-10
Mixing vessel(L) 6 10
Useful volume(L) 5 8
Working pressure in the vessel(bar) -1to2.5 -1to2.5
Max. temperature in the vessel(℃) 150 150
Stirring motor power (kw) 0.25 0.25*
Output speed r/min 0-86 0-86
Homogenizing motor power(kw) 1.1 1.1
Output speed r/min 0-6000 0-6000
Heating power(kw) 2 2
Vacuum pump power(kw) 0.25 0.25
Water vessel(L) 3.35 7.8
Useful volume(L) 2.7 6
Dispersion motor power(kw) 0.025 0.025
Output speed(r/min) 1200 1200
Heating power(kw) 1 1
Oil vessel(L) 3.35 7.8
Useful volume(L) 2.7 6
Dispersion motor power(kw) 0.025 0.025
Output speed r/min 1200 1200
Heating power(kw) 1 1
Dimensions 1400*600*1700(2000) 1500*600*1700(2000)
