Precision Processing for Food, Cosmetics & Chemical Industries

Product Brief Introduction

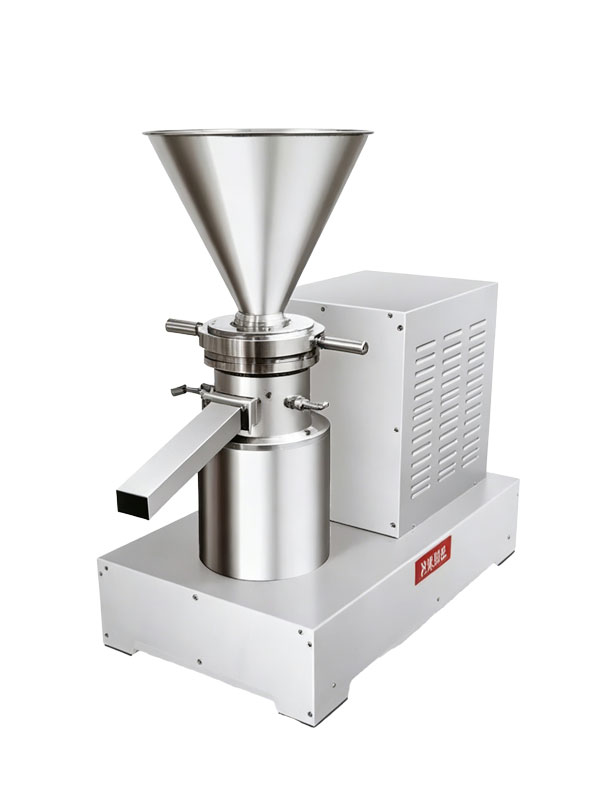

The Colloid Mill is a high-precision wet grinding and emulsifying machine designed for continuous production of ultra-fine materials. It integrates shearing, grinding, emulsification, dispersion and mixing in one unit, ideal for processing medium-to-high viscosity products across multiple industries.

It is widely used in:
Food & Beverage: Sauces, nut butters, dressings, plant-based milk, and condiments
Cosmetics & Personal Care: Creams, lotions, serums, and emulsions
Pharmaceuticals: Ointments, suspensions, gels, and semi-solid preparations
Chemicals & Industrial Products: Paints, coatings, emulsions, and fine dispersions

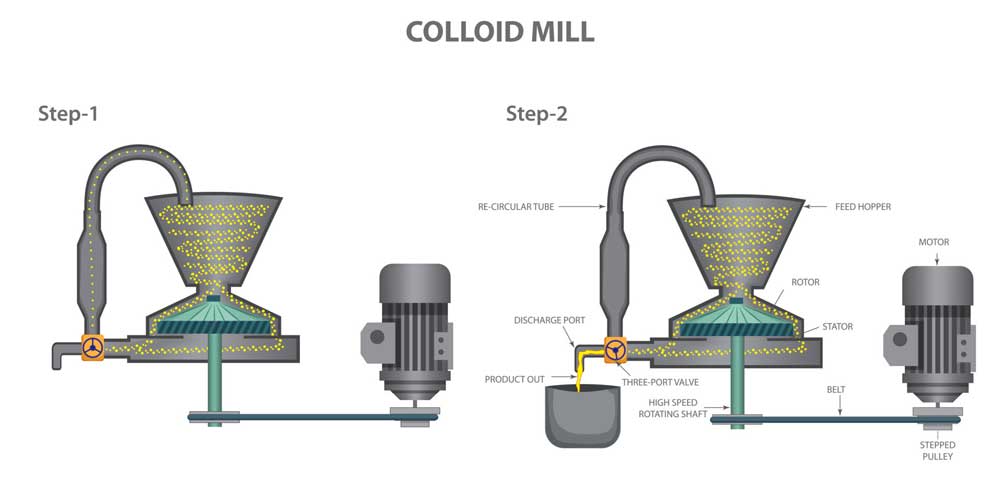

How It Works

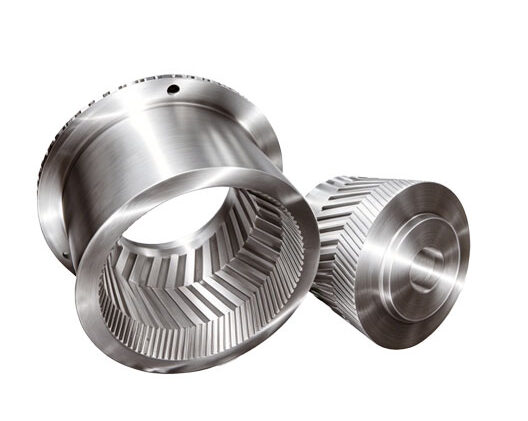

The mill features a 3-stage adjustable conical stator and a 4-stage high-speed rotating conical rotor, forming a precision grinding module. The gap between the stator and rotor can be infinitely adjusted from 0.01mm to 2mm, with each subsequent groove stage finer than the previous. As material passes through, it is subjected to strong extrusion, shearing, emulsification and grinding, resulting in ultra-fine, homogenized particles. The stator housing, discharge cavity and sealing parts are equipped with circulating water cooling for stable operation.

Parameter	Specification
Rotor Speed	2900 rpm (standard, adjustable on request)
Grinding Gap	0.01-2mm, infinitely adjustable
Cooling System	Circulating water cooling
Material Contact Parts	Stainless Steel (304/316L/SUS201 optional)

Adjustable grinding gap: 0.01mm–2mm for customizable particle size
Multi-stage conical rotor-stator design for progressive shearing
Integrated water cooling system for temperature-sensitive materials
Stainless steel construction for hygiene and easy cleaning
Continuous operation for high-volume production
