Mixcore Recirculation Lab Vacuum Emulsifying Mixer is a special specification of MC series vacuum emulsifier for laboratory research and development or small-scale production. Mixcore Recirculation lab Homogenizing Mixer can be customized according to your requirements.

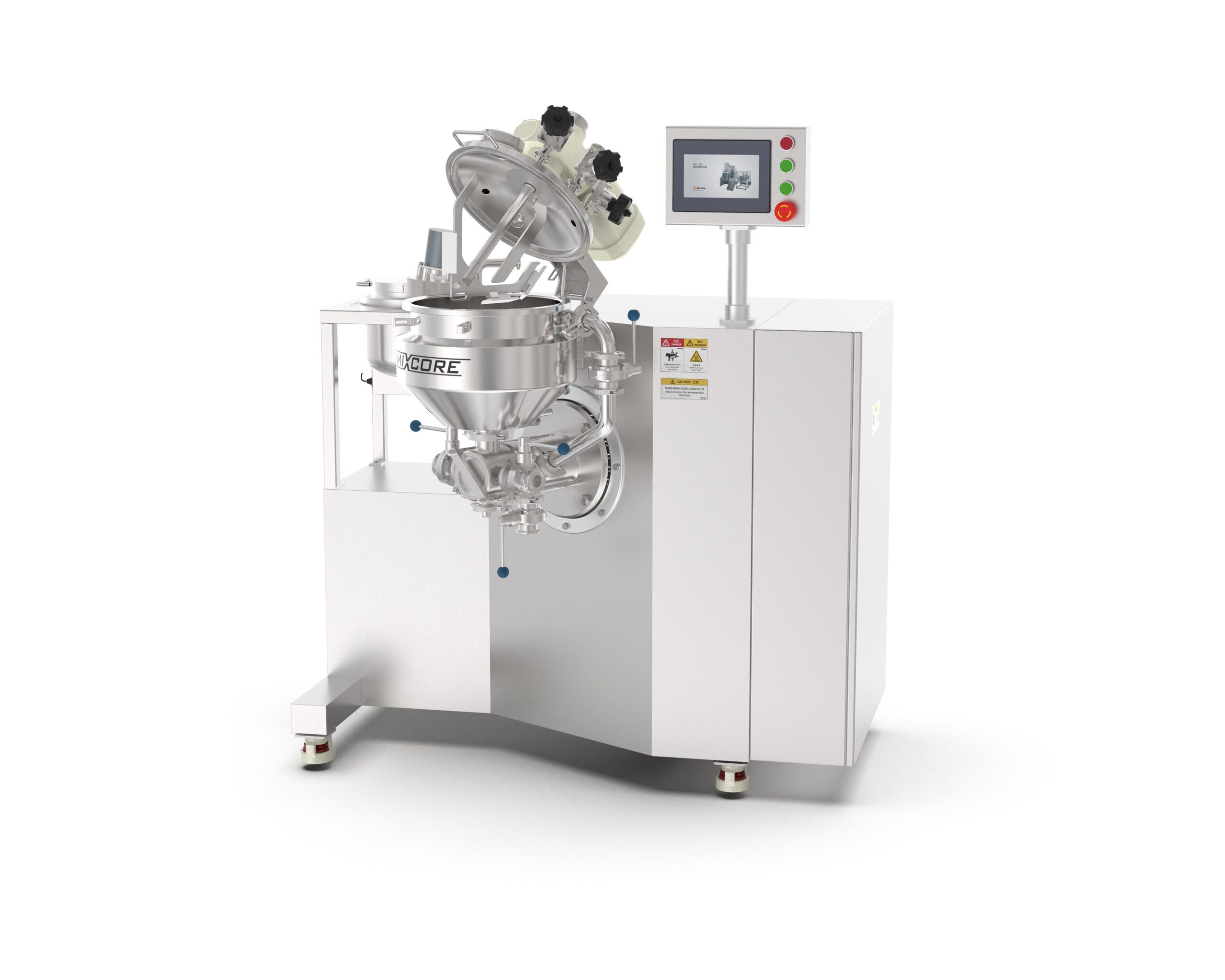

Mixcore Recirculation Lab Vacuum Emulsifying Mixer

MC series laboratory emulsifying mixer consists of emulsification tank, water phase pot, oil phase pot, vacuum system and electrical control system.

Mixcore Recirculation Lab Vacuum Emulsifying Mixer 1

MC Lab Emulsifying Mixer Working Principle:

The working principle of the homogenizer is mainly that the powerful motor rotates at high speed to form a vacuum between the rotor and the stator, and the material is sucked in from the upper and bottom of the rotor and the stator. The strong kinetic energy makes the rotor produce higher linear velocity, so that the material will fly out after strong impact, crushing, centrifugal squeezing, liquid layer friction, and strong shear between the rotation and the stator gap, and the action of forces in a variety of different directions Down, produce strong turbulence.

Mixcore Recirculation Lab Vacuum Emulsifying Mixer 2

The material undergoes repeated cycles of depolymerization, dispersion, homogenization, refinement, and shearing for a certain period of time under appropriate emulsifiers and mature processes to produce a stable emulsion; the homogeneous emulsifier is highly efficient, and also quickly and uniformly. One phase or even the liquid between many phases and the solids enter the other-a continuous phase that is not compatible with each other, usually a liquid process equipment. When the fineness of one or many materials reaches the number of micrometers, or even nanometers, the system can be considered homogeneous. When external energy is input, the two materials are recombined into a uniform phase.

Mixcore Recirculation Lab Vacuum Emulsifying Mixer 3


The process of mixing solid and liquid, liquid and liquid to form solution, colloid, suspension or emulsion can be used; if juice, soup, dairy products, tissue homogenate, cosmetics, surfactant, asphalt, emulsifier, More than a thousand kinds of materials such as oil field chemicals.


>Creams                              >Gels
>Ointments                         >Skin care
>Suspensions                     >Shampoo
>Natural cosmetics            >Sun lotions

>Toothpaste                        >Color cosmetics
>Sauces                               >Dressings

>Mayonnaise                       >Ketchup
>Liquid spices                     >Cheese spread

>Baby food                           >Jams
> Pet food                             >And many more

Mixcore Recirculation Lab Vacuum Emulsifying Mixer 5

Main technical parameters

Item Parameter
Model MC-15
Power 380V 50Hz (Customizable)
Design volume 15L
Working volume 12L
Agitator motor power 0.37kW
Max agitator max speed 0-86rpm
Homogenizer motor power 4kW
Max homogenizer speed 0-5000rpm
Oil pot design volume 7.3L
Oil pot working volume 6L
Oil pot agitator motor power 0.025kW
Oil pot max agitator max speed 1400rpm
Water pot design volume 7.3L
Water pot working volume 6L
Water pot agitator motor power 0.025kW
Water pot max agitator max speed 1400rpm
Vacuum pump power 0.37kW
